                                       HYDRAULIC  shears

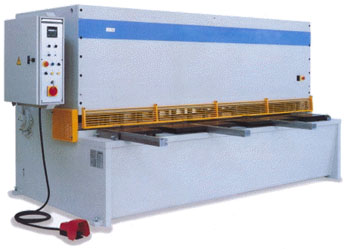

BARCORP® PRECI-CUT® Hydraulic Swing Beam Shears


Highest quality, no friction, maintenance free, built to last a lifetime

from 8 ft. to 14 ft. in length by 5/32" to 3/4" in thickness

STANDARD EQUIPMENT (FOR ALL MODELS)

  • PROGRAMMABLE NC Backgauge, Inch/Metric switchable, can be programmed with the size and quantity of cuts of up to 10 different parts.  Each part size in memory has an associated count-down cut counter that is programmed to a maximum of 99 cuts per size.  The control counts down to zero from the pre-set quantity and then automatically positions the gauge bar to the next part size.  In this way, the control cycles through each of the 10  part sizes allowing for a maximum of 10 parts x 99 cuts/part or 990 parts to be programmed. The control can be set to automatically repeat the program at its end.  Display resolution is  0.001 inch / 0.01mm.
  • Backgauge bar lifts up automatically at the end of its travel allowing the entry of plates into the shear which are longer than the backgauge bar travel.
  • Rexroth hydraulic components. Square D or Telemecanique Electrics to CSA or UL: 230, 460 or 600/60/3 or to required voltage with low volt control
  • HCHC top and bottom blades:
    Top blade - two edged
    Bottom blade - four edged
  • Stroke counter
  • Independent hydraulic holddowns
  • Rapid blade gap adjustment
  • Infinitely adjustable cutting length
  • Ball transfers on table
  • Shadowlight
  • Foot pedal control for both single or continuous stroking
  • Inching control via push buttons
  • Side squaring arm with scale to 40" and stop
  • Two front support arms - 36"
  • Removable filler plates in table
  • Protective front guarding
  • Oil tank level indicator

Click Here for Pricing


Standard PROGRAMMABLE NC front operated power backgauge control.
Automatic positioning of the gauge  bar to 10 different positions with 99 cuts/position.
Cycles through the program automatically.
Inch/Metric display, resolution to 0.001" / 0.01mm

Optional Equipment:

  • Large throat gap
  • Backgauge:  Travel extended  to 48" or longer CNC gauge
  • Holddown pads
  • Angle gauge
  • Squaring arms 48", 60", 80", 120", 144"


SPECIFICATIONS

--- SHEARING CAPACITY ---



Length

Mild Steel

Stainless Steel

Motor Power HP

Weight Lbs.

MODELS WITH 40" PROGRAMMABLE NC BACKGAUGE STANDARD

8'6"

1/4"

5/32"

17 hp

9,000

8'6"

5/16"

3/16"

25 hp

11,000

10'2"

1/4"

5/32"

17 hp

11,000

10'2"

5/16"

3/16"

25 hp

13,000

12'3"

5/32"

3/32"

15 hp

14,000

12'3"

1/4"

5/32"

25 hp

17,000

12'3"

5/16"

3/16"

25 hp

19,000

MODELS WITH 9" GAP IN FRAME AND WITH 40" PROGRAMMABLE NC BACKGAUGE STANDARD

8'6"

1/4"

5/32"

25 hp

14,000

8'6"

5/16"

3/16"

25 hp

15,500

8'6"

3/8"

1/4"

30 hp

17,000

8'6"

1/2"

5/16"

40 hp

22,500

10'2"

1/4"

5/32"

25 hp

16,000

10'2"

5/16"

3/16"

25 hp

18,000

10'2"

3/8"

1/4"

30 hp

24,000

10'2"

1/2"

5/16"

40 hp

26,000

10'2"

9/16"

3/8"

50 hp

30,000

10'2"

5/8"

7/16"

50 hp

33,000

10'2"

3/4"

1/2"

60 hp

36,000

12'3"

1/4"

5/32"

25 hp

21,000

12'3"

5/16"

3/16"

25 hp

25,000

12'3"

3/8"

1/4"

30 hp

30,000

12'3"

1/2"

5/16"

40 hp

33,000

12'3"

9/16"

3/8"

50 hp

42,000

12'3"

5/8"

7/16"

50 hp

46,000

12'3"

3/4"

1/2"

60 hp

52,000

14'3"

1/4"

5/32"

25 hp

26,000

14'3"

5/16"

3/16"

30 hp

30,000

14'3"

3/8"

1/4"

30 hp

38,000

14'3"

1/2"

5/16"

40 hp

41,000

14'3"

9/16"

3/8"

50 hp

53,000

14'3"

5/8"

7/16"

50 hp

58,000

LARGER MODELS AVAILABLE, PLEASE ENQUIRE
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
