Home > Our Products > Bending > Hydraulic Plate Roll

                                      Hydraulic Plate rolls

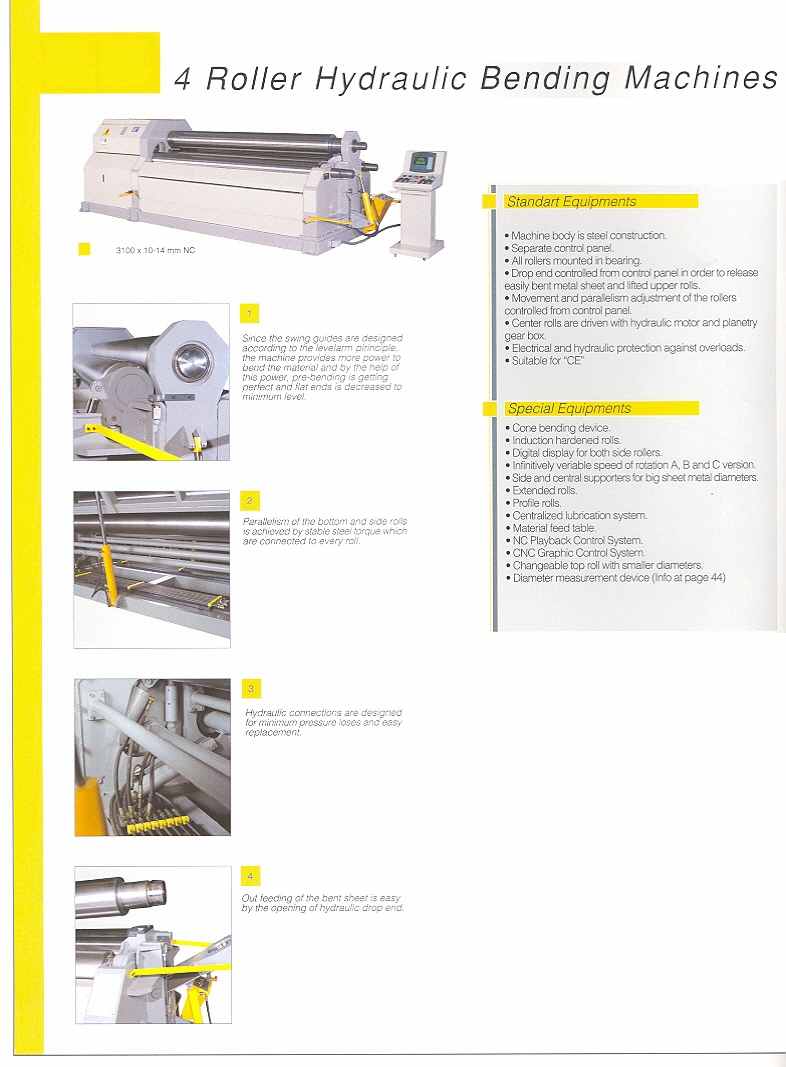

BARCORP® PRECI-BEND® Hydraulic 4 Roll Plate Roll



                                                           Highest quality, built to last a lifetime

                                     Barcorp® Hydraulic 3 Roll Double Initial Pinch Bending Rolls

                                                  With Hydraulic Drop End and Digital Readout

                                                         Double Initial Pinch Rolls Eliminate the

                                     Necessity to Take the Plate Out to Pinch the Other Side



         STANDARD FEATURES

  • All steel construction
  • All rollers mounted in bearing
  • Drop end controlled from control panel  in order to easily release bent sheet metal and lift upper rolls
  • Movement and parallelism adjustment of the rollers controlled from control panel
  • Rolls are driven by three separate hydraulic motors and gearboxes
  • Electrical and hydraulic overload protection
  • Free-standing control panel
  • UL / CSA approved




SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Questions about our products? Call us TOLL FREE In Canada: (800) 877-1116 In the US: (800) 878-2806
